MAGMINI SURFACE TRACK SET
MAGMINI SURFACE TRACK SET
ETA:
Couldn't load pickup availability
Product Details
Product Details
Finish: Black
Surface Track Dimensions: L: 2000mm (max) x H: 15.4mm x D: 5.8mm

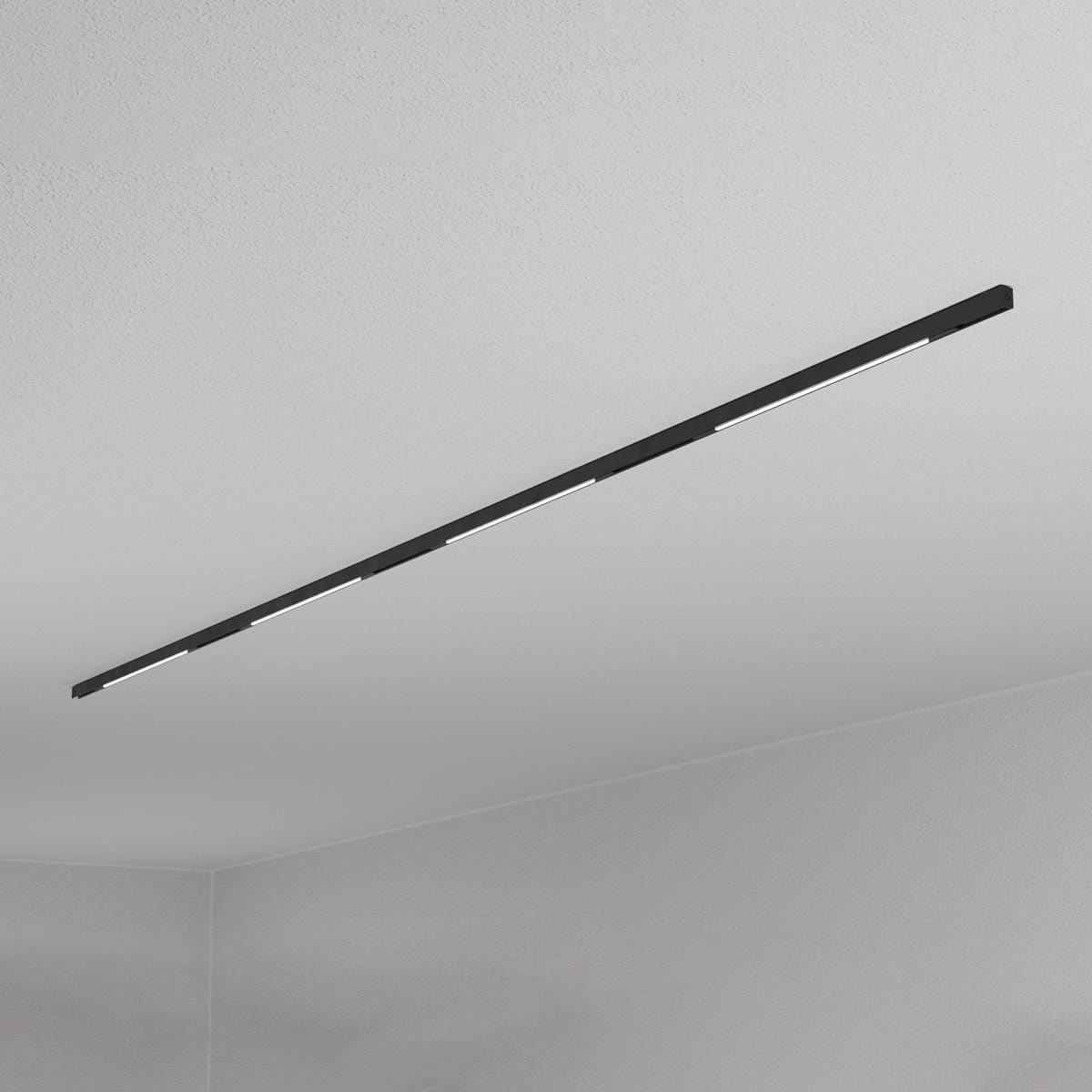

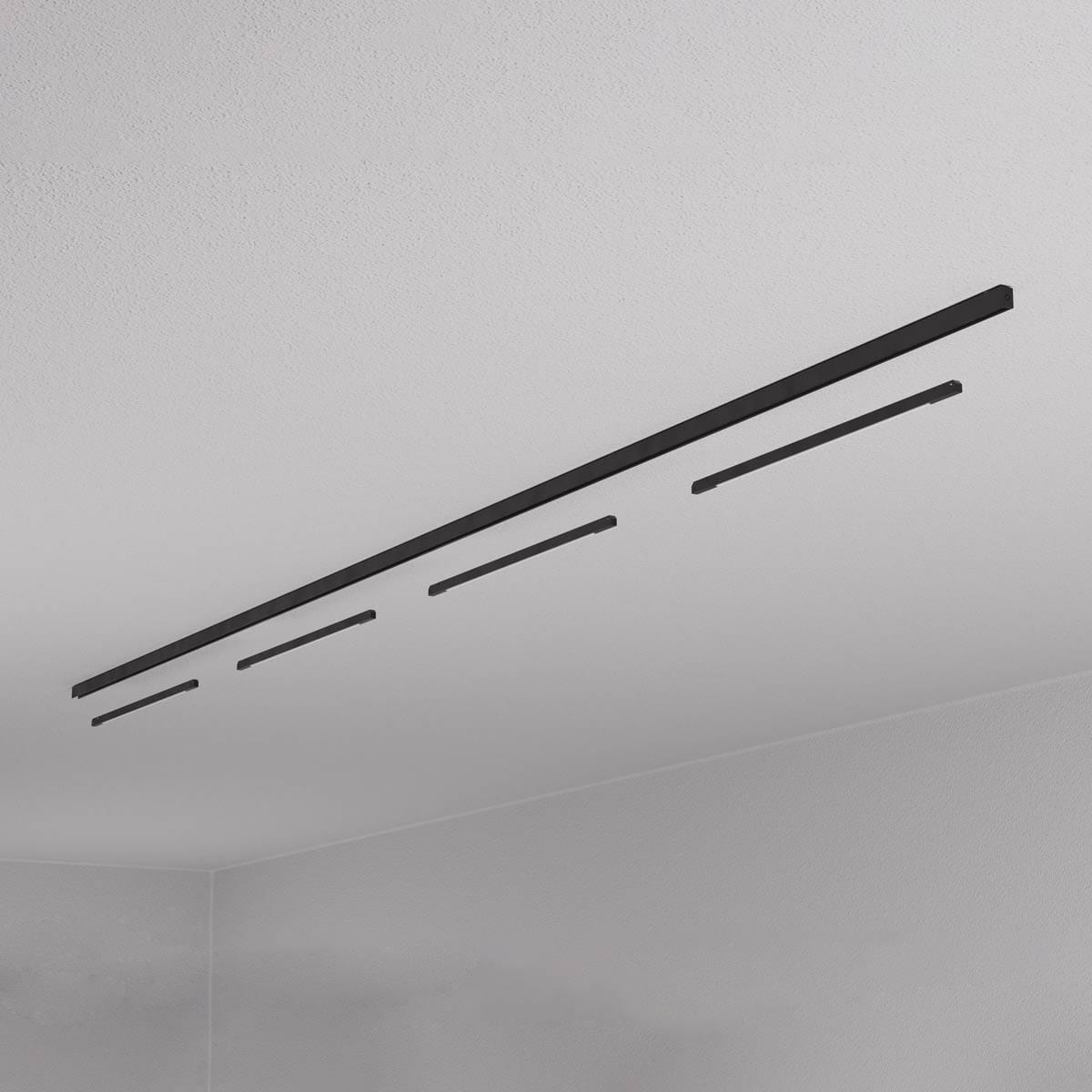

Linear Specifications
- Dimensions: L: 367mm / 667mm x H: 10mm
- Light Source: LED Included
- Wattage: 3W / 6W
- Lumen: 135lm / 280lm
- Kelvin: 3000K
- CRI: 90
- Beam Angle: 60˚
- Dimmable: As per selected Driver

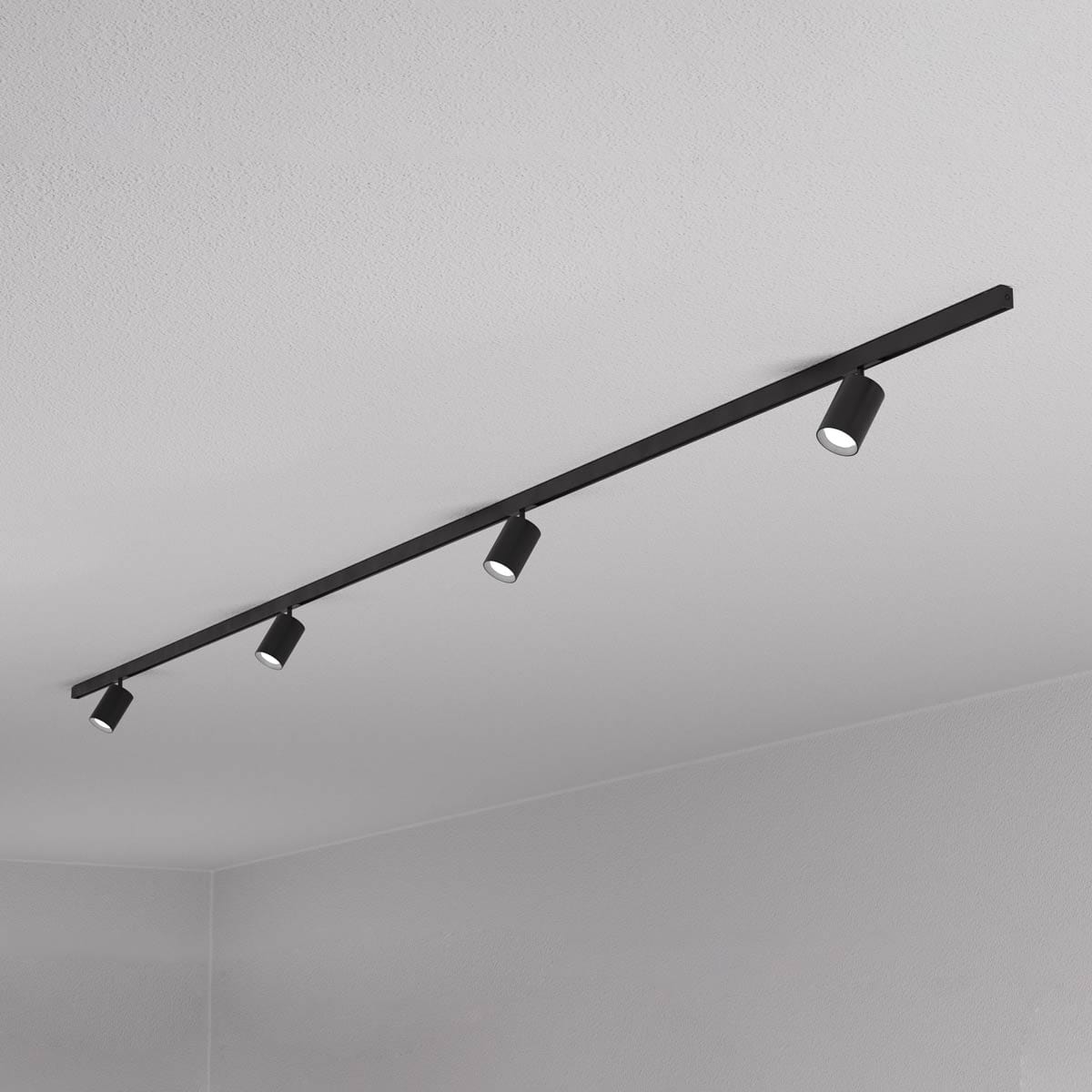

Spotlight 38˚ Specifications
- Dimensions: Diam: 35mm x H: 55mm
- Ceiling Dimensions: 57mm x H: 10.5mm
- Light Source: LED Included
- Wattage: 1W / 5W
- Lumen: 74lm / 425lm
- Kelvin: 3000K
- CRI: 90
- Beam Angle: 38˚
- Dimmable: As per selected Driver
Spotlight 15˚- 45˚ Specifications
- Dimensions: Diam: 35mm x H: 55mm
- Ceiling Dimensions: 57mm x H: 10.5mm
- Light Source: LED Included
- Wattage: 5W
- Lumen: 160lm - 15˚ / 400lm - 45˚
- Kelvin: 3000K
- CRI: 90
- Beam Angle: 15˚ - 45˚
- Dimmable: As per selected Driver
Notes:
-
This set includes:
- MAGMINI TRIMLESS TRACK BLACK 2000mm
- MAGMINI SINGLE BLACK POWER FEEDER UNIT

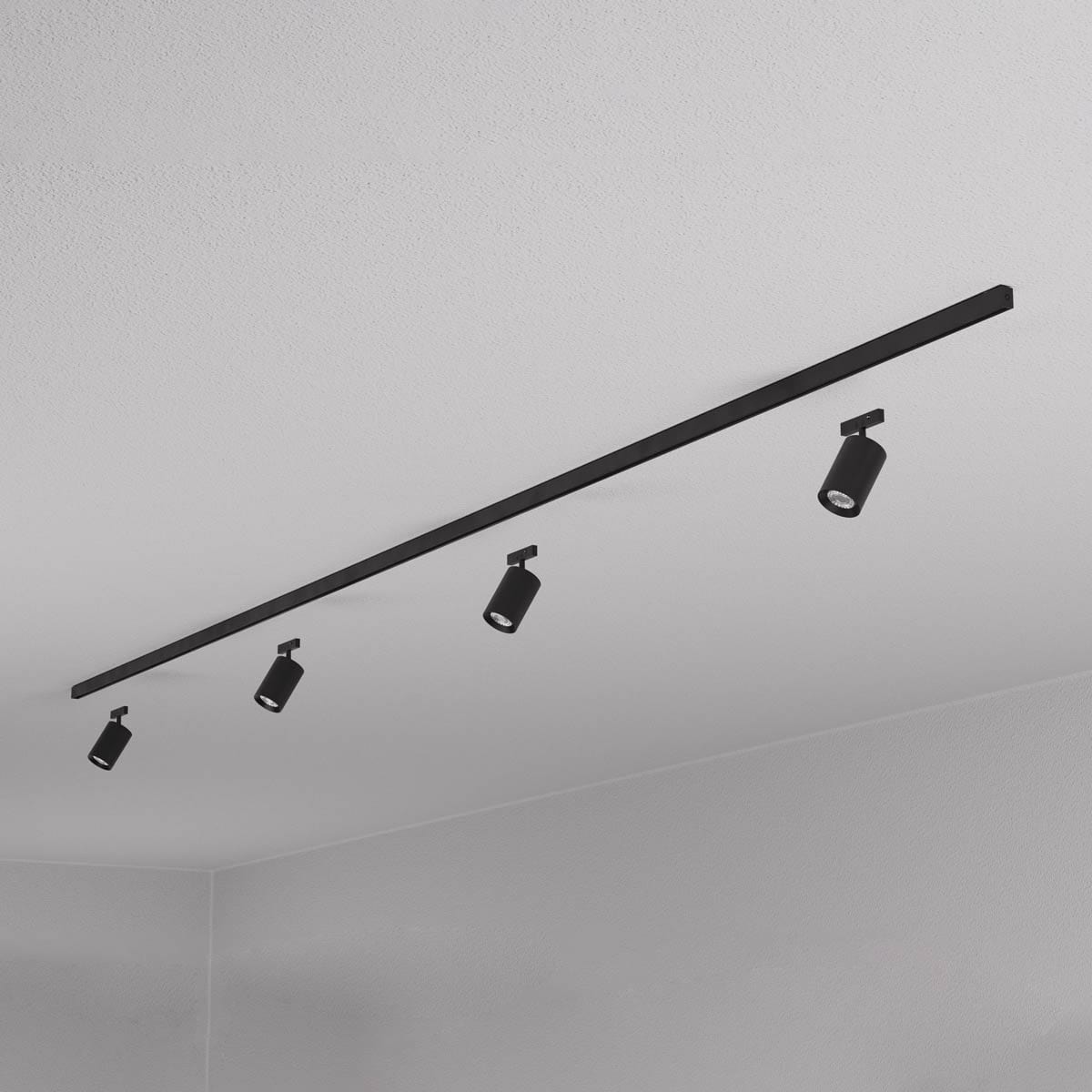

- 4x MAGMINI TRACK LINEAR 3W or 6W or MAGMINI SPOTLIGHT 1W or 5W with Beam Angles of 38˚ or 15˚ - 45˚
- HC - LED DRIVER 30W, 24V CONSTANT VOLTAGE - Suitable for mounting on ceilings or walls with length up to 2000mm and can be cut down to size or joined for longer lengths.
- Trimless track offers solutions to compose curved profiles with 90˚ curve connectors as standard with custom solutions for 45˚ and 180˚ available for special order upon request.
- Enquire for other customisation or configuration.
